Coil Packs

Wicked Wires UK hand selected coil pack deals

New customers will get a complimentary one off 20% off on us, just create an account on our website and use code NEW with your first purchase! (Applies to all coil categories, minimum spend £12)

Free shipping on orders £35 and over

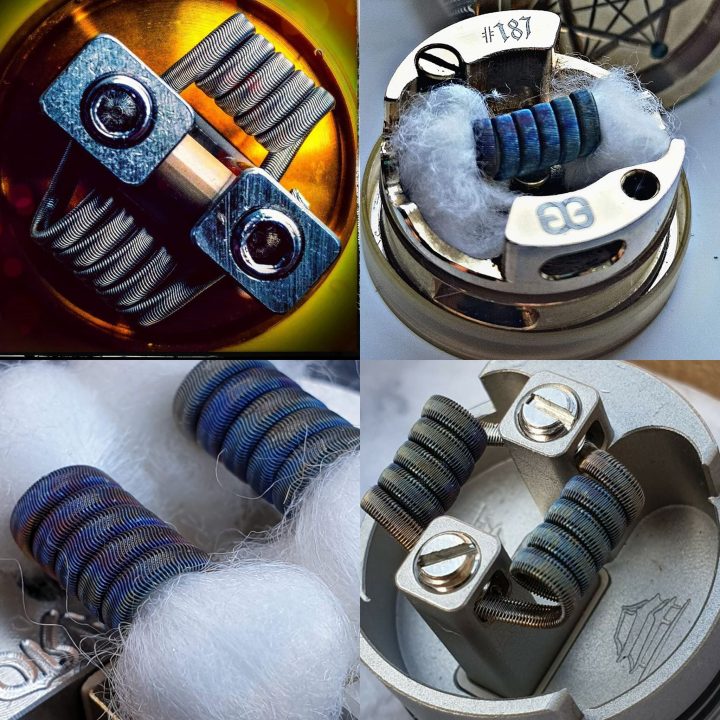

REGULATED PACK

REGULATED PACK

£16.99

This coil pack is best suited for vapers with regulated setups.


Standard retail value: £29.96


Staggerton

Wicked wires uk staggerton coils made by revwrapz.

Staggerton coils are a very flavourful and dense cloud producing coil, they offer the same type of performance as revwrapz framed staple coil, at a slightly lower ohm due to using the same kanthal/ni80 core wires but fused with ni80 in a stagger fused technique and including one less wrap to lower ohm level slightly. The staggerton coil is perfect for those vapers who prefer to be at .10 ohms or just below on their vape devices.

Nichrome 80 round wire frames, kanthal .4 ribbon wire cores with ni80 round wire fuse

Sold in pairs

* Post-fire pulse:
    * 5 wrap / 3mm ID:
        * Single coil: 0.19-0.20Ω
        * Dual coil: 0.08-0.10Ω

Staggerton coils from wicked wires uk are made with a 6 ply kanthal .4mm x .1mm core, framed in 2 x ni80 28 gauge and then perfectly stagger fused every time in 38 gauge ni80.


Fralien

Wicked wires uk Fralien coils made by revwrapz.

Fralien coils are a very flavourful and dense cloud producing coil, they offer an advanced type of performance to revwrapz framed staple coil, staggerton coil due to the juice wicking properties of the alien clapton fuse, The Fralien coil is perfect for those vapers who prefer to be at .10 ohms or just below on their vape devices.

Nichrome 80 round wire frames, Ni80 .3 ribbon wire cores with ni80 38 round wire Alien Clapton Fuse

Sold in pairs

* Post-fire pulse:
    * 5 wrap / 3mm ID:
        * Single coil: 0.19-0.24Ω
        * Dual coil: 0.09-0.12Ω

Fralien coils from wicked wires uk are made with a 6 ply ni80 .3mm x .1mm core, framed in 2 x ni80 28 gauge and then perfectly Alien claptoned in 38 gauge ni80.


Alien FUSED Clapton

26Ni80*38Ni80 .10 3mm ID
DUAL

A perfect blend of ni80 round wire bringing you the best performance possible for your vaping experience, this type of coils is well suited for that all round flavour and cloud production handcrafted to perfection each and every time.


Framed Staple

Wicked wires uk Framed Staple Coils made by revwrapz, Framed Staple Coils are a very flavourful and dense cloud producing coil, they offer the same type of performance as revwrapz staggertons, at a slightly higher ohm due to using the same ni80 core wires but fused with ni80 in a slightly different technique and including one extra wrap to raise ohm level slightly. Framed Staple Coils are perfect for those vapers who prefer to be above .10 ohms on their vape devices.

Nichrome 80 round wire frames, NI80 ribbon wire cores with ni80 round wire fuse

Sold in pairs

* Post-fire pulse:
    * 6 wrap / 3mm ID:
        * Single coil: 0.24-.26Ω
        * Dual coil: 0.12-13Ω

Framed Staple Coils from wicked wires uk are made with a 6 ply NI80 .3mm x .1mm core, framed in 2 x ni80 28 gauge and then perfectly fused every time in 38 gauge ni80.

All wicked wires uk coils are sterilised prior to packing and go through a triple stage quality check process before being packaged for postage to our customers.



How to install

Some coils may ohm lower than your device can fire (staggertons .08-.10Ωframed staples .12Ω) in this instance it is advised to fit one coil at a time, if using a regulated device use a low wattage, 15-25 watts depending on the ohm of the coil,trim the legs of both coils to the desired length required by your device, fit each coil to its dedicated posts ensuring you are using the correct posts for your device.

Ensure all coil legs are cut to length evenly, correctly and any trailing wires have been removed. Check that none of the coils are touching any of the externals of the rda they are fitted too or the 510 pins for single coil setup devices.

It is advised to now remove the grease and oils that have been applied to the coil from your hands during fitting, by either using an ultra sonic cleaner or some hot soapy water and a clean small soft nylon brush to clean the coils (remove from vape device when doing this) give the coils a good rinse in hot water and refit to your vape device at a low wattage.

Ensure that post screws are not tighten too tight as this can damage the legs on more fragile coils such as fused staples and cause the legs to snap at the post holes, this can also cause the coil to read incorrect ohms when in use (some fluctuation of final ohms readings are a good indication of damage caused by incorrect fitting in this manner, usually seen at the re-wick stage of coil care and a good indication of coil replacement needed)

Once happy with the fit of the coils check there are at the same height as the air flow holes on your rda cap, by inserting the coiling tool and gently lifting or lower the coil into place, again making sue that both coils are not touching any parts of the rda accept where they are secured into the post holes.

Apply power to the coils and bring to a gentle amber glow, hot spots may appear in the form of bright white/red spots, to remove these, discontinue applying power to the coils and strum the coils using your ceramic tweezers, or pull the individual coils of the coil apart (hot spots are generally caused by the individual coils of the coil touching and causing a short)
how to maintain wicked wires uk coils.

If you find you have one coil heating quicker then another, check both coils are set at the same distance from the posts that they are connected to, check the ID (inner diameter) of each coil has not been changed due to the fitting process, by using the correct size coiling tool and gently tugging on each coil to correct that coils ID.

(ensure the coils are secured in place correctly before doing this, wicked wires uk is not responsible for any damage caused to coils during the fitting process, we advise only experienced vapers use our coils due to this)

How to maintain wicked wires uk coils

After some use the coils may begin to look a little black or dark, this can easily be cleaned off by using some of the following steps.

Take your rda off of your device and put onto an ohm reader or a regulated device with fully charged batteries (DO NOT PERFORM THIS STAGE ON A MECHANICAL DEVICE)
Gently dry burn your coils by removing your wick, apply low power to your coils at around 20-30 watts to produce a low amber glow, as this occurs any sugars that have built up on the coils should burn away, once this begins release the power on your device and set to one side to allow the device and the coils to cool naturally.

(DO NOT RUN UNDER WATER)

Once the device and coils have cooled, remove your rda/rdta from your device, take to a sink and wash the coils and rda with a soft nylon brush (toothbrush works well) and some warm soapy water, with more complex coils be gentle if using this process to clean coils. give the coils and rda a good rinse with clean warm/hot water and shake off excess water before fitting back to your device.

(wicked wires uk recommend you use an ultra sonic cleaner for long term solution for this process with 2 or 3 cycles run if possible)

You should now perform the same steps as you did when you fitted the coils from new, to ensure all the screws in the posts are still tight after being cleaned, that the coils themselves have not degraded to a state that they require replacing, check the integrity of the insulators on your rda before applying power to it again, check that the 510 pin on the rda/rdta is correctly tightened and then re-glow both coils to ensure they are glowing evenly (if in doubt follow the first steps in these how to tips)

Once happy with the cleanness and fit of the coils allow to cool, re-wick and vape!










(wicked wires uk is not responsible to damaged caused to coils/rda/rdta/mods or any individual due to incorrect fitting, or caused due to general maintenance or use of wicked wires uk hand made coils, the information and tips described above are to be used at the customers own risk and as a general how to guide, you should be sure you have sufficient knowledge of ohms law, correct battery safety and general use. That you have a good understanding of how to use rebuild-able vape devices and when purchasing wicked wires uk coils you do so at your own risk)

In Stock
